Choosing the right RFID antenna is crucial for applications requiring precise, close-range tag detection - especially when working with challenging materials like metals and liquids. Today, we're exploring Times-7's True NearField antenna series, specifically designed for "near zone only" tag detection with high accuracy and reliability.
Understanding near-field technology in RAIN RFID
Before diving into the specifics of the antenna series, it's important to understand what makes near-field technology unique. Near-field technology provides key benefits for specific RFID applications. Unlike traditional RFID antennas, near-field antennas use magnetic fields for close-range communication, ensuring consistent reads without dead spots. This makes them perfect for applications where precise control is essential and stray reads must be prevented.
Why choose Times-7 True NearField Antennas?
Times-7 True NearField antennas operate with a pure near-field read zone. This means they are ideal for applications requiring precise item-level tracking without interference from surrounding tagged assets. With no surface dead spots and minimal far-field interference, they deliver consistent and reliable tag reads in a precisely controlled space.

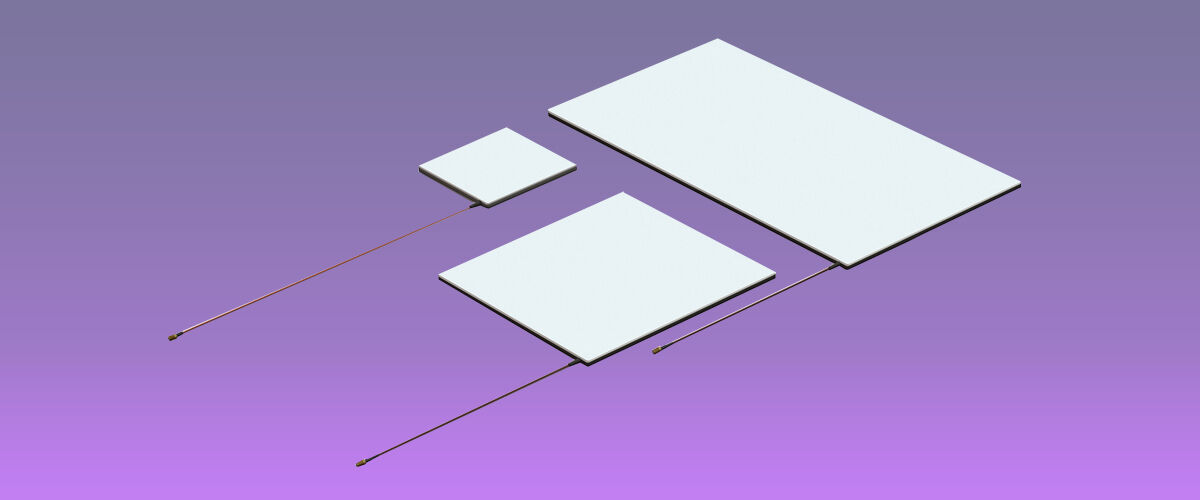

They are available in three different sizes, making them flexible for different applications:
- A1115 – Compact (150 x 150 mm) - for space-constrained environments.

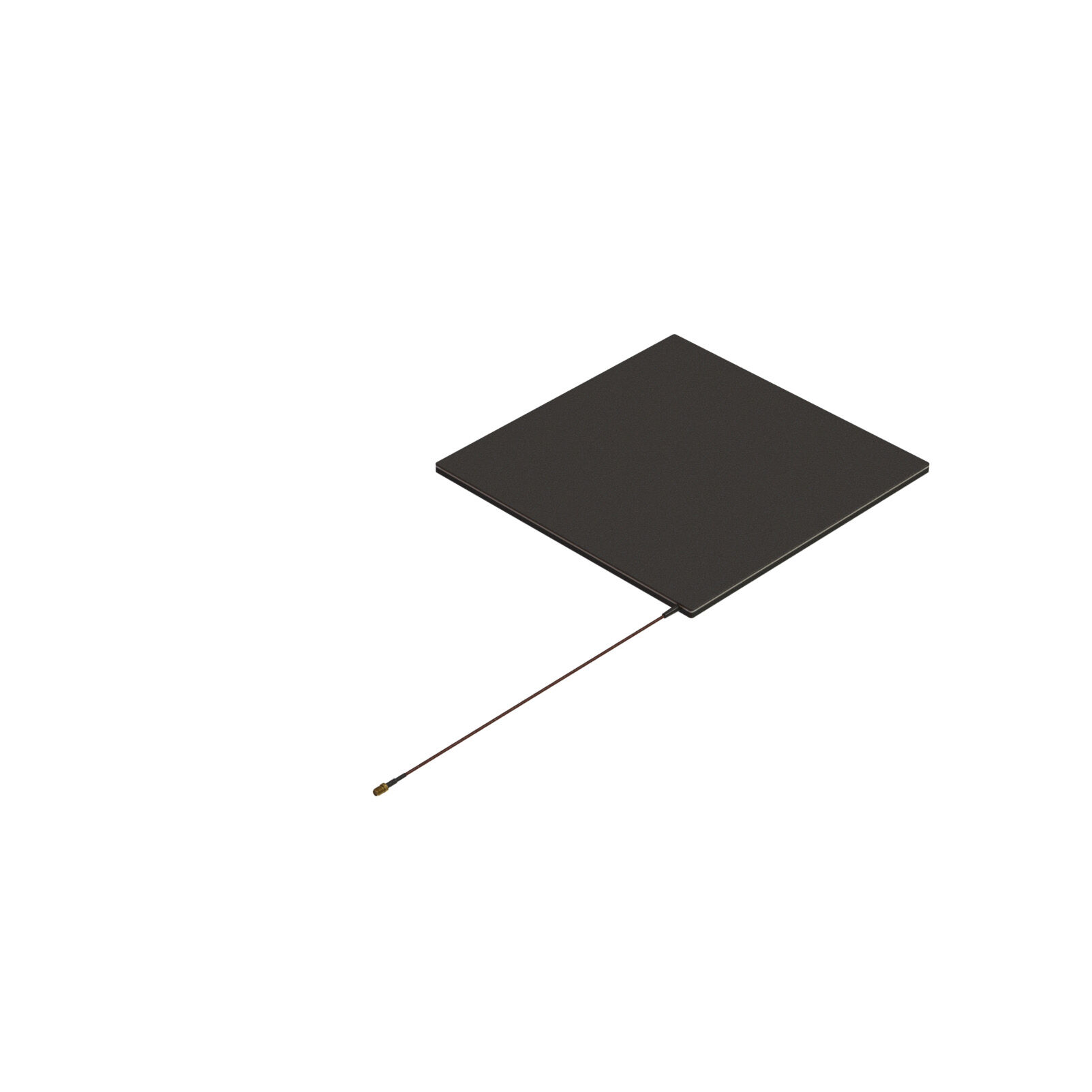

- A1130 – Medium (300 x 300 mm) - for balanced coverage.
- A1163 – Large (600 x 300 mm) - for extensive surface area coverage.
Times-7 True NearField Antenna comparison chart
|
Feature
|
A1115
|
A1130
|
A1163
|
|
Size
|
150 x 150 x 8.6 mm
|
300 x 300 x 8.6 mm
|
600 x 300 x 8.6 mm
|
|
Best for
|
Single item tracking
|
POS and shelving
|
Bulk scanning
|
|
Read zone
|
Small
|
Medium
|
Large
|
|
Colors
|
Black or White
|
Black or White
|
Black or White
|
|
IP-rating
|
IP54
|
IP54
|
IP54
|
|
Temperature
|
0°C to +50°C
|
0°C to +50°C
|
0°C to +50°C
|
|
Applications
|
• Payment systems
• Small item tracking
• Precise scanning
|
• Store checkouts
• Medical supplies
• Library books
|
• Warehouse work
• Production lines
• Bulk sorting
|
|
Mounting
|
• Screw holes
• optional self-adhesive rubber feet
|
• Screw holes
• optional self-adhesive rubber feet
|
• Screw holes
• optional self-adhesive rubber feet
|
Why use a near-field antenna?
Near-field antennas work differently from regular RFID antennas because they use near magnetic fields instead of combined (far) electromagnetic fields; making them ideal for:
- Reading tags on metal and liquid-containing items (e.g., pharmaceutical vials, bottled beverages and jewelry)
- Preventing stray reads by limiting tag detection to a confined surface
- Applications that require high precision, such as item-level tracking in retail and healthcare settings
Conclusion
Selecting the right near-field antenna for your RFID system is essential for achieving accurate and reliable tag detection. The Times-7 True NearField series—A1115, A1130, and A1163—offers tailored solutions for applications that demand precise tag reads without interference.
- Choose the A1115 for small-scale, high-accuracy applications.
- Opt for the A1130 for medium-sized installations like POS-systems and shelving.
- Select the A1163 for large-scale deployments in warehouses and logistics.
With these options, you can select the best antenna for your needs. If you need help, feel free to reach out to our team for expert advice!
